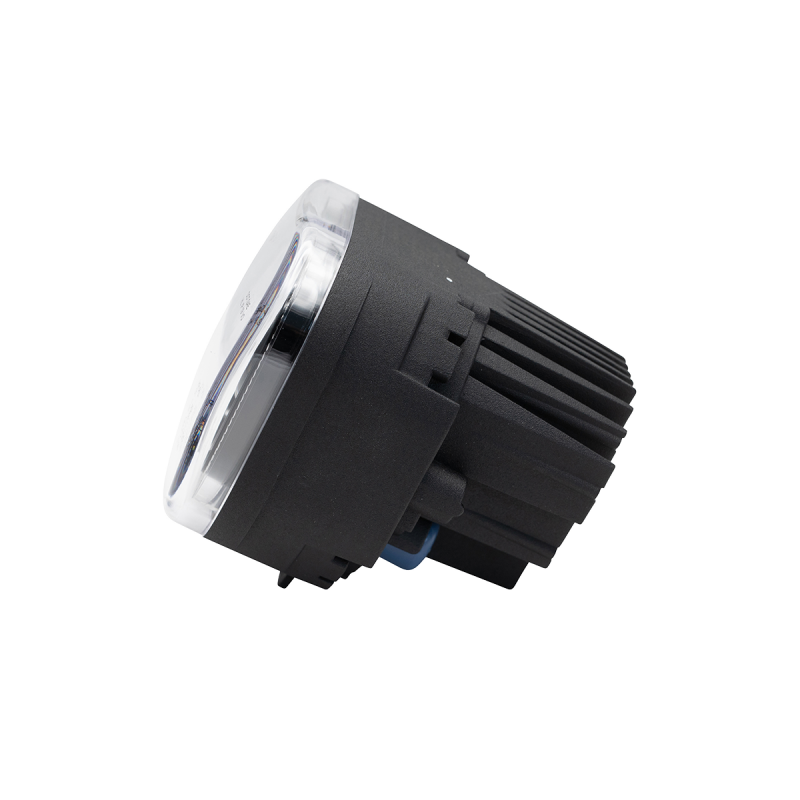

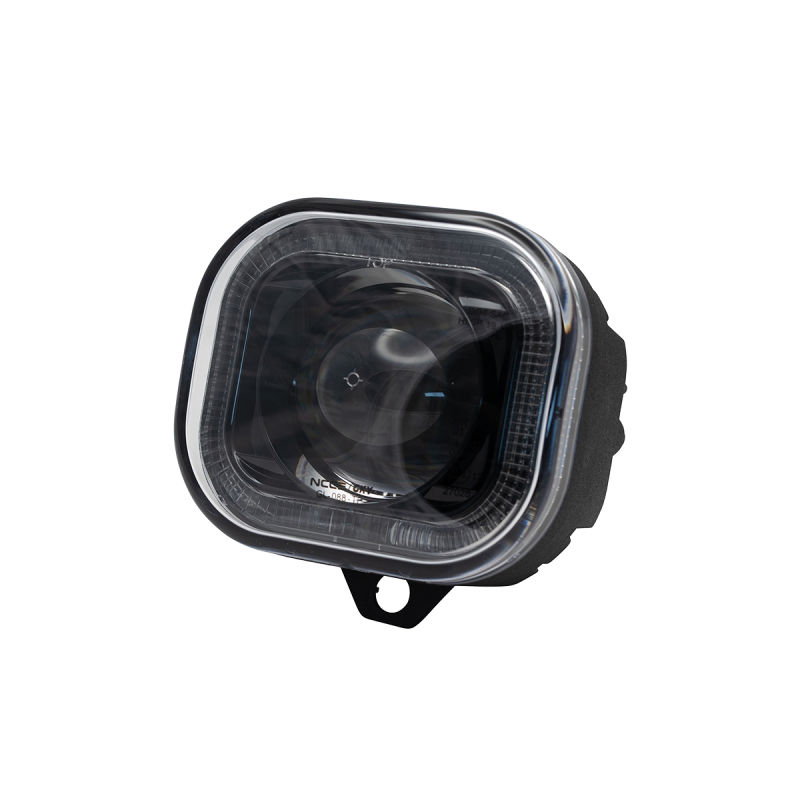

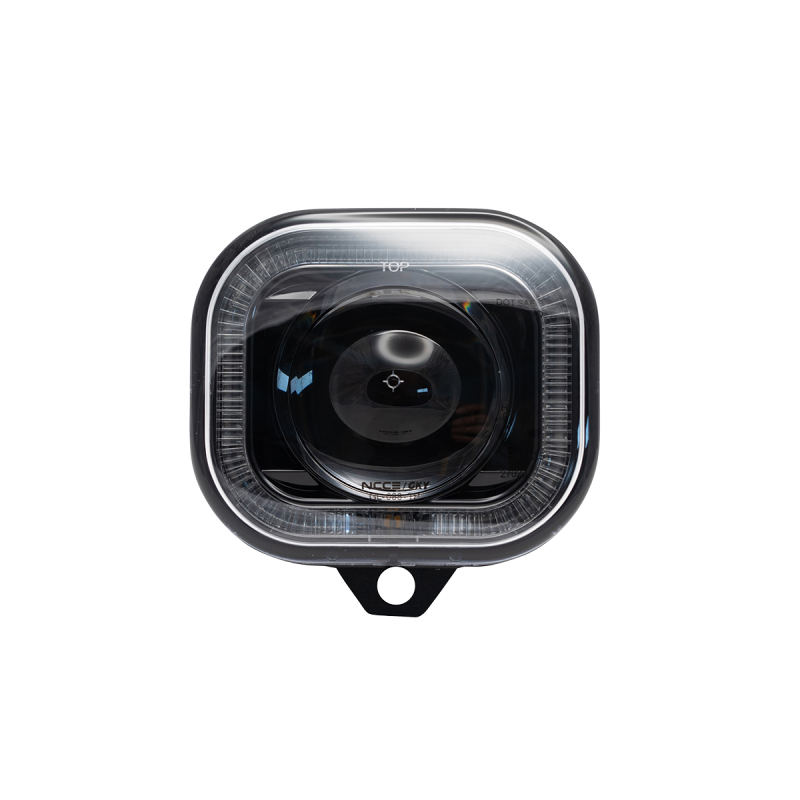

Nolden NCC Avego LED high beam headlamp with position lamp and indicator, black-gloss

Item number: SL-NC-6AB1XXXXX

Modern, rectangular Nolden high beam headlight AVEGO with indicator and position light. Light guide technology. black-gloss.
289,90 €

including 19% VAT. , plus shipping (Paket)

Variant

#global.varText#

The Nolden AVEGO has a new, modern rectangular design. Its high beam is complemented by a modern LED light guide, which takes on both the indicator and position light function.
The light guide is designed as a ring in the "O" version. In the "U" version, the light guide is hidden at the top.

The AVEGO is also available as a mono high beam headlamp with a non-functional light guide.

With the minimum installation depth of 91 mm, the lamp is also very suitable for tight installation spaces. The mounting sheets are square at a distance of 94.85 mm from one another.
Mounting: Module
Technology: LED
Light Function(s): High Beam Sidelight Turn Indicator
Protection Class: IP67
Voltage: 12V/24V
Shape: rectangular
Shipping weight: 0,80 Kg
Product weight: 0,70 Kg
Zulassung: ECE
Temperaturbereich: -40° bis +80° Celsius
Material Gehäuse: Aluminium Druckguss
Material Abschlussscheibe: Gehärtetes Polycarbonat

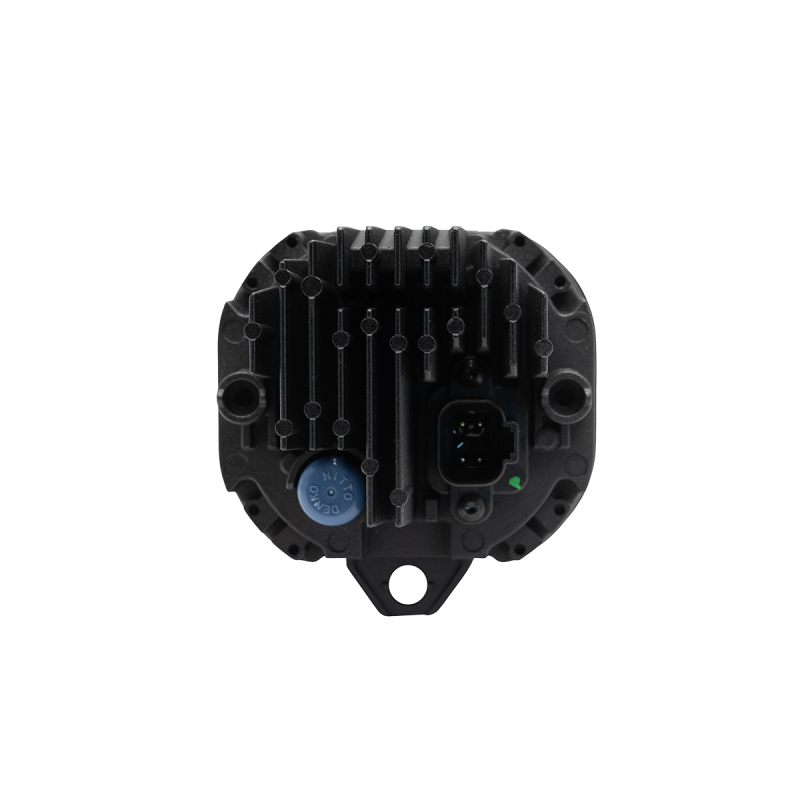

Connector: Light: DEUTSCH DT15-4P
(Needs cable with: DEUTSCH DT06-4S-XXXX)
Power at 12V (W): High Beam: 22 W
Position Light: 1 W
Turn Indicator( Modus A): 29 W
Turn Indicator ( Modus B/C): 9 W
(Same for 24V)
Leitung: Keine
