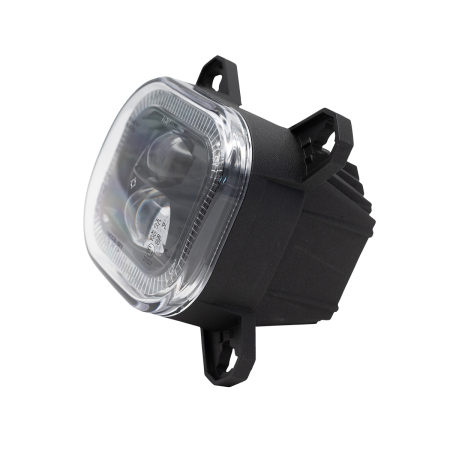

Nolden NCC AVEGO LED low beam light with daytime running and position light, pair
The Nolden AVEGO has a new, modern rectangular design. Its low beam is supplemented by a modern LED light guide that takes on the daytime running light and position light function.
The headlight is available in the "U" and "O" versions. In the "O" version the light guide is designed as a circle, in the "U" version the upper, horizontal strip is blanked out.
With the minimum installation depth of 91 mm, the headlight is also very suitable for tight installation spaces. The mounting sheets are positioned in a square at a distance of 94.85 mm from one another.
The AVEGO is also available as a mono low beam or mono high beam with non-functional light guide or as a high beam with the light guide as a turn signal and position light.
It can easily be combined with the AVEGO high beam.
Note: This headlight may not be combined with another daytime running light within the application of the StVZo, as according to ECE R48 only one daytime running light may be installed on each side of the vehicle.
No cabling or connectors included.
The headlight is available in the "U" and "O" versions. In the "O" version the light guide is designed as a circle, in the "U" version the upper, horizontal strip is blanked out.
With the minimum installation depth of 91 mm, the headlight is also very suitable for tight installation spaces. The mounting sheets are positioned in a square at a distance of 94.85 mm from one another.
The AVEGO is also available as a mono low beam or mono high beam with non-functional light guide or as a high beam with the light guide as a turn signal and position light.
It can easily be combined with the AVEGO high beam.
Note: This headlight may not be combined with another daytime running light within the application of the StVZo, as according to ECE R48 only one daytime running light may be installed on each side of the vehicle.
No cabling or connectors included.
| Traffic: | RHD LHD |
| Light Function(s): | Low Beam Daytime Running Light Sidelight |
| Mounting: | Module |
| Technology: | LED |
| Protection Class: | IP67 |
| Voltage: | 12V/24V |
| Shape: | rectangular |
| Shipping weight: | 1,60 Kg |
| Product weight: | 1,40 Kg |
| Conformity: | ECE |
| Temperature: | -40° to +80° C |
| Housing Material: | Die Casting Alloy |
| Transparent Cover: | Hardened Polycarbonate |
| Power at 12 V: | Low Beam: 25 W Position light: 1 W DRL: 11 W |
| Lumen: | 1401 lm |
| Connector: | Light: DEUTSCH DT15-4P (Needs cable with: DEUTSCH DT06-4S-XXXX) |
| Cable: |
